Features
OCXO (Oven Controlled Crystal Oscillator)

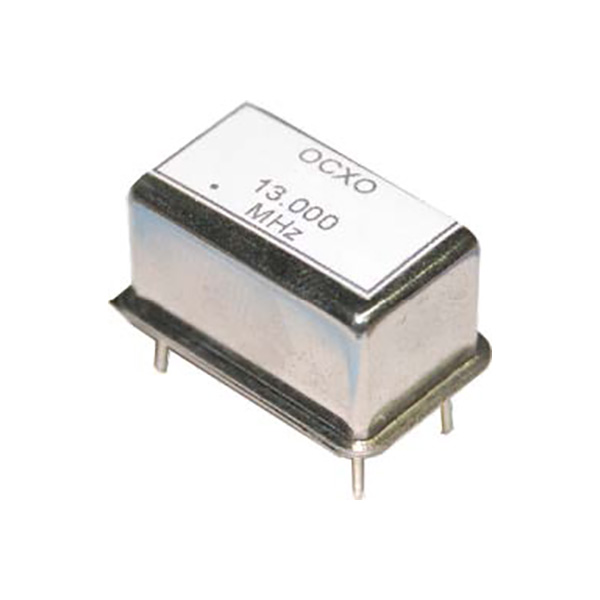

Typical 20.3×12.7×11mm 14-Pin Full-size Thru-hole OCXO
Frequency range from 5MHz to 40MHz
±50ppb frequency stability over -40~+85℃
Stratum 3 (Overall ±4.6ppm including 10 years aging)
Very fast warm-up and accurate stability
Applications: Base station, Digital Switch, Test Equipment, Measuring Equipment, SDH, SONET, etc
RoHS Compliant & Pb-Free
Specifications
|
Type |
2X Series DIP-14 OCXO | ||
| Output Type | HCMOS | ||
| Output Load | 15pF, or specify | ||
|
Output Wave Form |
Rectangular | ||
|
Supply Voltage |
3.3V/5.0V | ||
|
Frequency Range |
5~40MHz | ||
|
Operating Temperature |
-20~+70℃, or specify | ||
|
Frequency Stability |
Frequency Tolerance | ±0.1ppm Max. | |
| vs. Operating Temperature | ±50ppb~±200ppb | ||
| vs. Supply Voltage | ±50ppb Max. (±5 Change) | ||
| vs. Load | ±50ppb Max. (±10 Change) | ||
| vs Aging | ±5.0ppb /Daily, ±0.5ppm/Year, ±3.0ppm/10 years | ||
| Voltage Vol (Max.) / Voh (Min.) |
0.1Vcc/0.9Vcc |
||
|
Duty Cycle |
45~55% | ||
|
Spurious |
-60dBc | ||
|
Warm-up |
±0.1ppm (In 2 minutes @+25, referenced to 1 hour) | ||
|
Power Consumption (Steady state) |
0.8W Max. | ||
|
Frequency Adjustment Range |
±5.0ppm (+1.65V±1.65V/+2.5V±2.5V) | ||
| Phase Noise @20MHz | @10Hz |
-105dBc/Hz |
|
| @100Hz | -130dBc/Hz | ||
| @1KHz | -140dBc/Hz | ||
| @10KHz | -150dBc/Hz | ||
| Packing Unit | 200pcs. | ||
Dimensions [mm]
