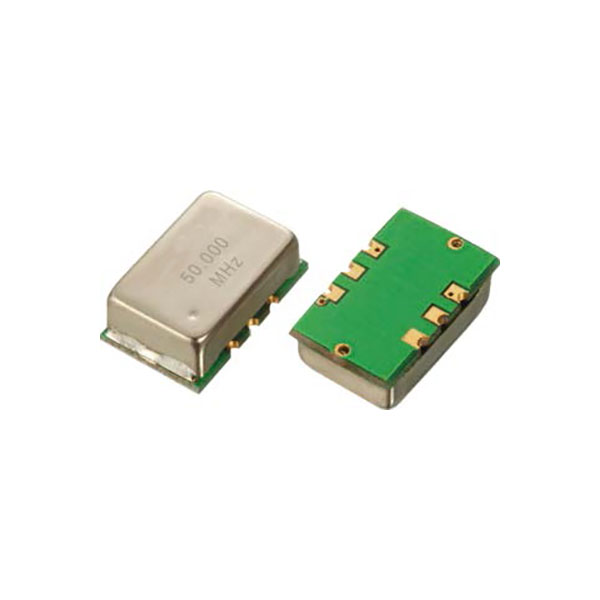

Features
Surface mount package, size with 14×9.6×5.6mm
High precision characteristics cover up to a wide frequency range from 1MHz to 170MHz
Either fundamental and 3rd overtone solution
CMOS output
3-state function
Automatic mounting and reflow soldering
Applications: PCI-Express, Gigabyte Ethernet, SDH, Fiber Channel, ATA, SCSI, etc
RoHS Compliant & Pb-Free
Specifications
| Type | 9N Series SMD Crystal Oscillator |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 1.8~5.0V |
|
Frequency Range |
1~170MHz |
| Frequency Stability | ±20ppm, ±25ppm, or specify |
| Supply Current | 50mA Max. |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
| Voltage Vol (Max.) / Voh (Min.) | 0.1Vdd / 0.9Vdd |
| Rise (Tr) / Fall (Tf) Time | 10ns Max. |
| Period Jitter | 40 ps Max. |
| Duty Cycle |
40~60% |
|
Start-up Time |
10ms Max. |
| Phase Jitter (12kHz~20MHz) | 1ps Max. |
| Aging (at 25℃) | ±3ppm /Year Max. |
| Packing Unit | 1000pcs./Reel |

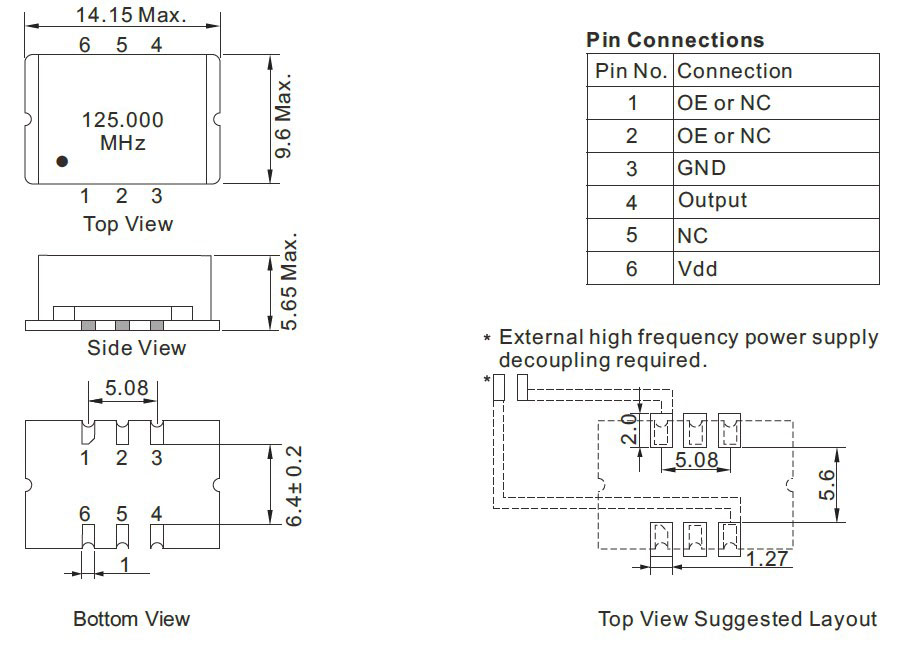

Dimensions [mm]
