Features
Differential Output Crystal Oscillator (LVPECL Output)

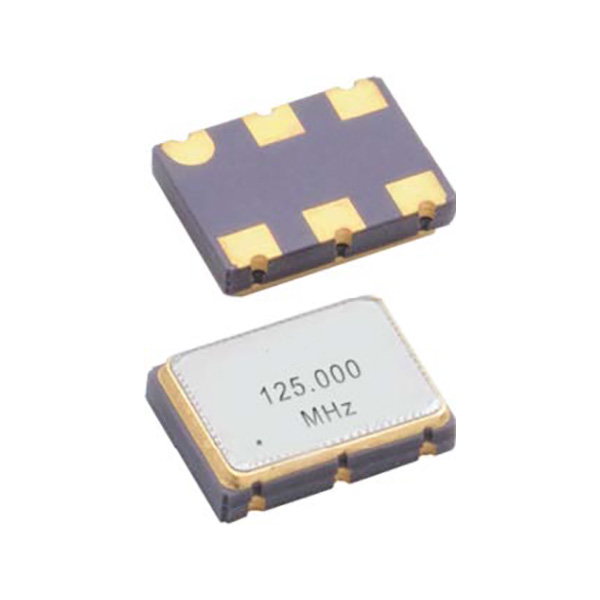

Typical 7.0×5.0×1.45mm, LVPECL output crystal oscillator
Output frequency range from 10MHz to 1500MHz
Low supply voltage operation: 2.5V/3.3V
Excellent low phase noise and jitter
3-state function available
Automatic mounting and reflow soldering
Applications: Server, SAN, Broadband Access, Smart Grid, Gigabit Ethernet, Fibre channel, etc
RoHS Compliant & Pb-Free
Specifications
| Type | 7J Series LVPECL Output SMD Oscillator | ||
|
Output Type |
LVPECL | ||
| Output Load | 50Ω to Vcc-2V | ||
|
Supply Voltage |
2.5V/3.3V | ||
| Frequency Range | 10~320MHz | 10~1500MHz | |
|
Supply Current |
100mA Max. |
50mA Max. |
|
|
Overall Frequency Stability* |
±25ppm, ±50ppm, or specify | ||
|
Operating Temperature |
-40~+85℃, or specify | ||
| Storage Temperature | -55~+125℃ | ||
|
Voltage Vol (Max.) /Voh (Min.) |
Vcc-1.62V /Vcc-1.026V | ||
|
Rise (Tr) /Fall (Tf) Time |
1.0ns Max. | ||
| Duty Cycle | 45~55% | ||
| Start-up Time | 2ms Max. | 10ms Max. | |
|
Phase Noise (156.25MHz) @1KHz |
-130dBc/Hz |
-113dBc/Hz |
|
|
Phase Jitter (12KHz~20MHz) |
1pS Max. |
||
|
Aging (at 25℃) |
±3ppm/Year Max. | ||
| Packing Unit | 1000pcs./Reel | ||
*Including frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration

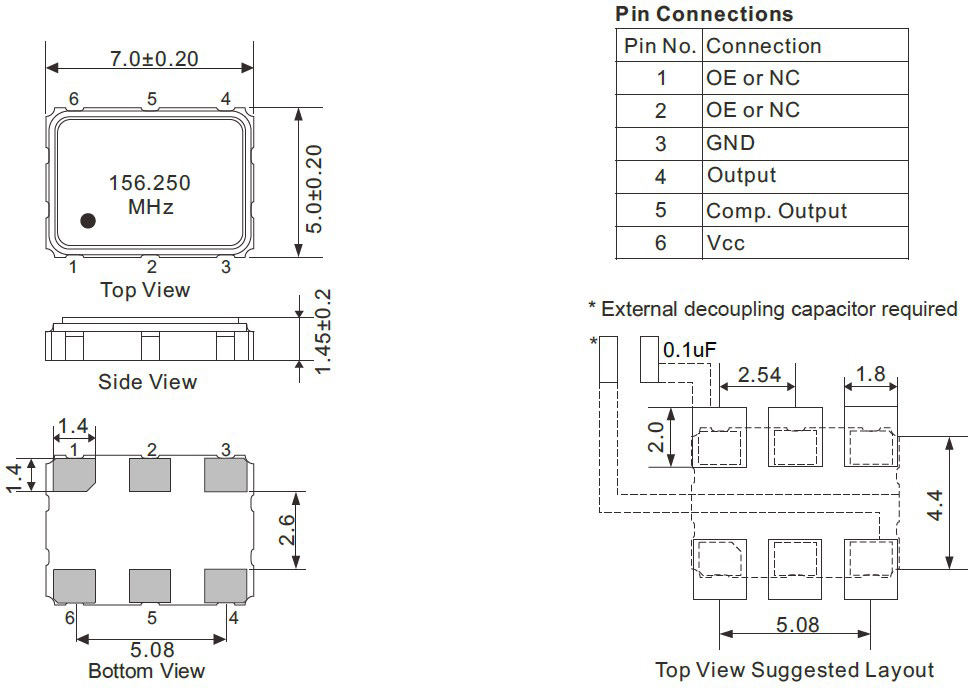

Dimensions [mm]
