Features

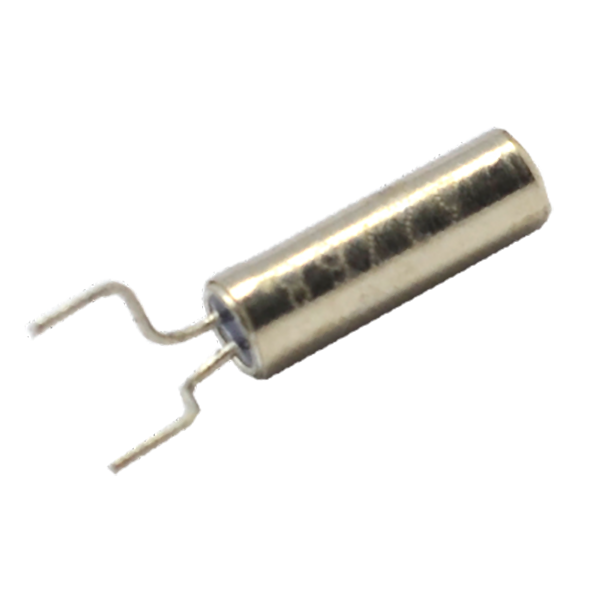

SMD tuning fork crystal of lead formed heat resistance
Frequency range from 30kHz to 1350kHz
Small size with Ø2.0×6.0×2.6 mm
High reliable environmental performance
Automatic mounting and reflow soldering
Applications: Clock, Smart Meters, IoT, Consumer Electronics, PC, MCU, etc.
RoHS Compliant
Specifications
| Type | 6LB SMD Cylindric Crystal |
|
Frequency Range |
32.768kHz |
|
Frequency Tolerance |
±20ppm, or specify |
|
Load Capacitance |
6.0~12.5pF, or specify |
|
Operating Temperature |
-40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
|
Drive Level |
1.0μW Max. |
| Turnover Temperature | ±25℃±5℃ |
| Parabolic Coefficient | (-0.034±0.006)×10-6/℃ |
| Shunt Capacitance | 2.0pF Typ. |
|
Aging (at25℃) |
±3ppm/Year Max. |
| Packing Unit | 1000pcs. |

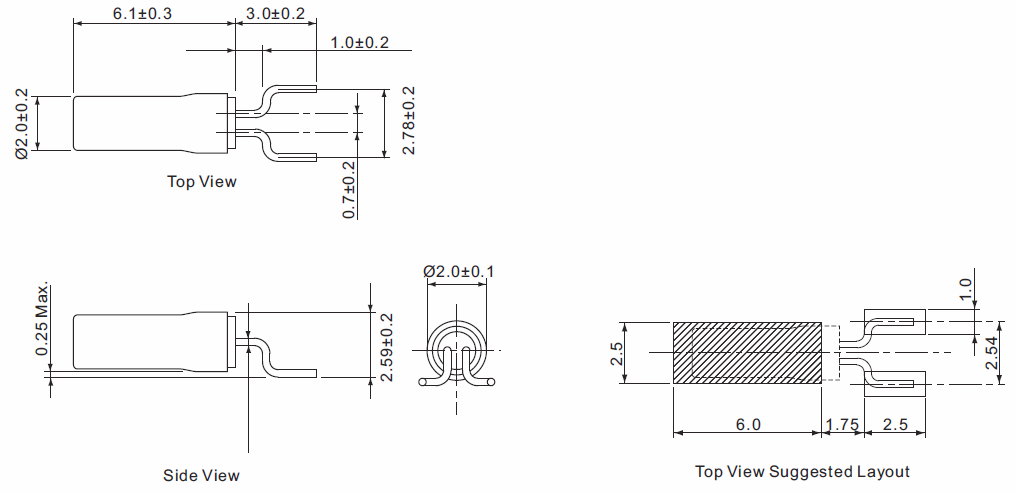

Dimensions [mm]
