Features

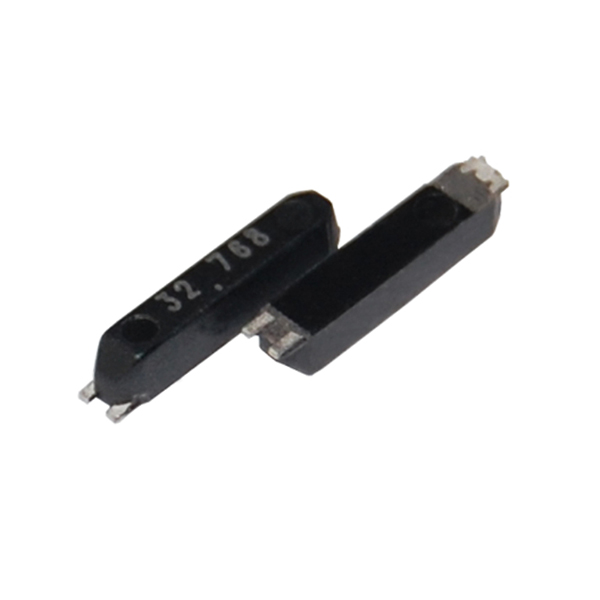

Plastic molded SMD tuning fork crystal of heat resistance.
High precision and tight frequency stability.
Ultra-thin type with a height of 1.4mm Max.
High reliable environmental performance.
Automatic mounting and reflow soldering.
Applications: PC, Gaming Equipment, Radio Communications, Smart Grid, Small Communication Devices, etc.
RoHS Compliant
Specifications
| Type | 7M SMD Crystal |
| Frequency Range | 32.768kHz |
| Load Capacitance | 12.5pF, or specify |
| Drivel Level | 1.0μW Max. |
| Frequency Tolerance | ±20ppm, or specify |
| Series Resistance | 65KΩ Max. |
| Turnover Temperature | ±25℃±5℃ |
| Parabolic Coefficient | (-0.035±0.05)*10-6/℃2 |
| Operating Temperature | -20~+70℃, -40~+85℃ |
| Storage Temperature | -55~+125℃ |
| Shunt Capacitance | 0.8pF Typ. |
| Aging (at 25℃) | ±3ppm at first year |
|
Packing Unit |
3000pcs. /Reel |

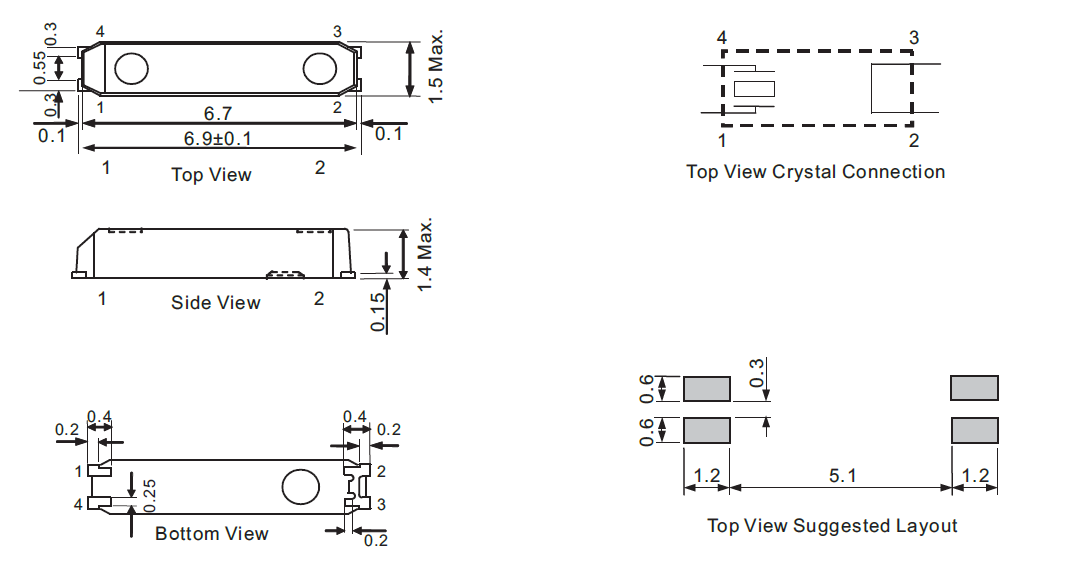

Dimensions [mm]
