Features

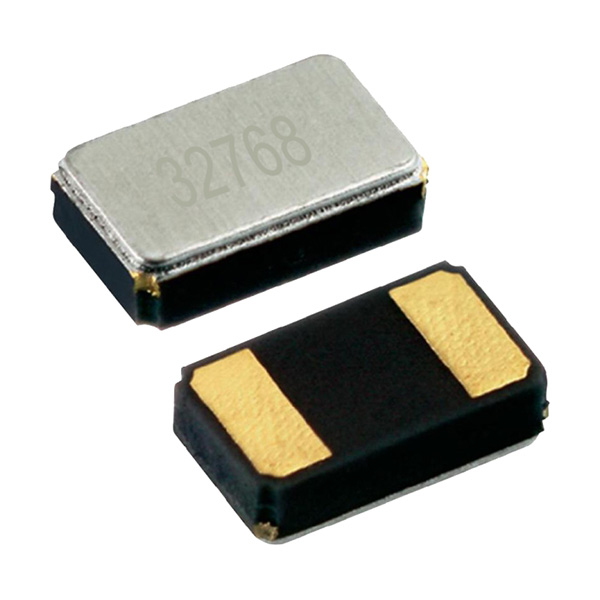

2 pads ceramic surface mount package.
2012 size miniature and lightweight SMD tuning fork crystal resonator with a low profile of 0.6mm.
High reliable environmental performance.
Automatic mounting and reflow soldering.
Applications: Small Communication Device, Wave Clock, Mobile Communications, Consumer Devices, etc.
RoHS Compliant & Pb-Free.
Specifications
| Type | 7R SMD Crystal |
| Frequency Range | 32.768kHz |
| Load Capacitance | 12.5pF, or specify |
| Frequency Tolerance | ±20ppm, or specify |
| Drive Level | 0.5μW Max. |
| Series Resistance | 90KΩ Max. |
| Turnover Temperature | ±25℃±5℃ |
| Parabolic Coefficient | (-0.03±0.01)*10-6/℃2 |
| Operating Temperature | -20~+70℃, -40~+85℃ |
| Storage Temperature | -55~+125℃ |
|
Shunt Capacitance |
1.3pF Typ. |
| Aging (at 25℃) | ±3ppm at first year |
|
Packing Unit |
3000pcs. /Reel |

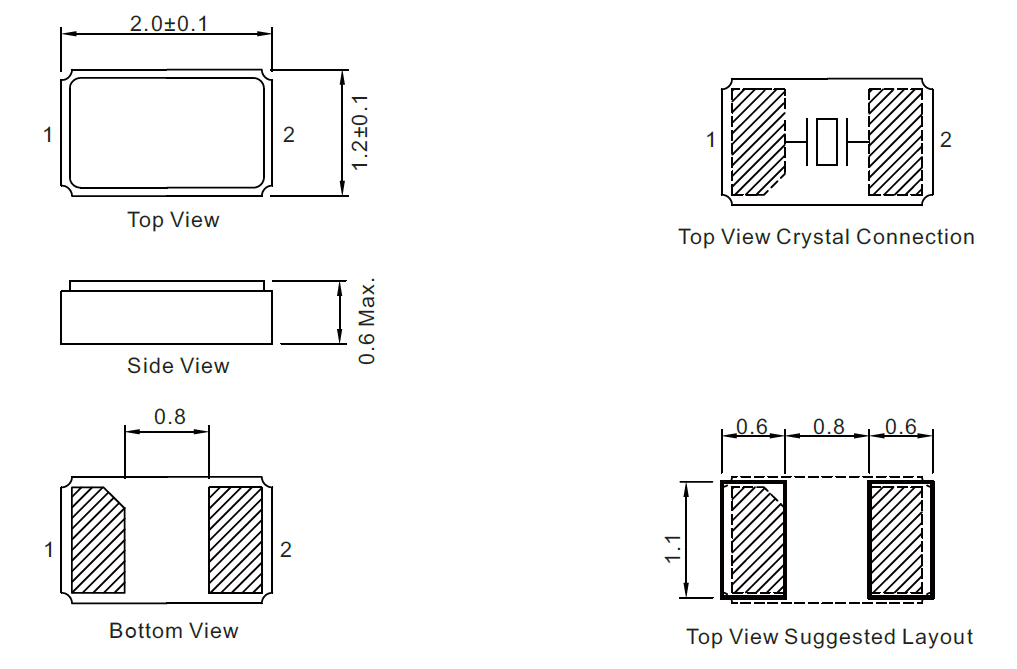

Dimensions [mm]
