Features
2 pads surface mount package

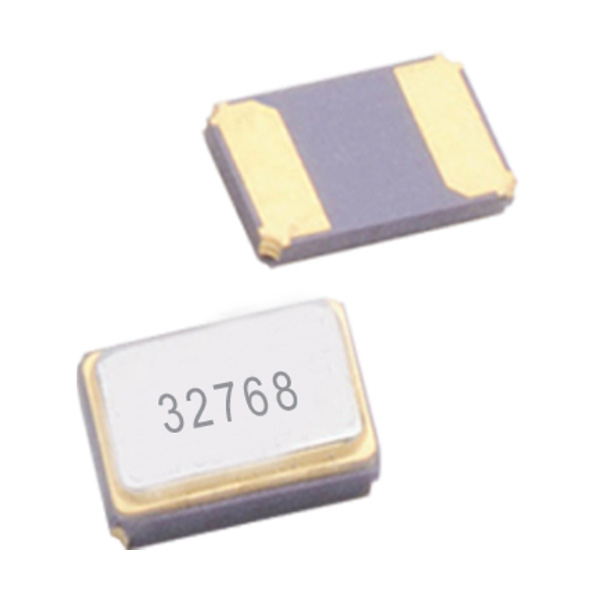

1610 size miniature and lightweight SMD tuning fork crystal resonator with a low profile of 0.5mm
High reliable environmental performance.
Automatic mounting and reflow soldering.
Applications: Small Communication Device, Clock, Wireless Communication, Telecommunication, RFID and more.
RoHS Compliant & Pb-Free
Specifications
| Type | 7K SMD Crystal |
| Frequency Range | 32.768kHz |
| Frequency Tolerance | ±20ppm, or specify |
| Load Capacitance | 12.5pF, or specify |
| Operating Temperature | -20~+70℃, -40~+85℃ |
| Storage Temperature | -55~+125℃ |
| Turnover Temperature | ±25℃±5℃ |
| Parabolic Coefficient | (0.03±0.01)*10-6/℃2 |
| Drive Level | 0.5μW Max. |
| Shunt Capacitance | 1.3pF Typ. |
| Aging (at 25℃) | ±3ppm at first year |
| Series Resistance | 90kΩ Max. |
| Packing Unit | 3000pcs. /Reel |

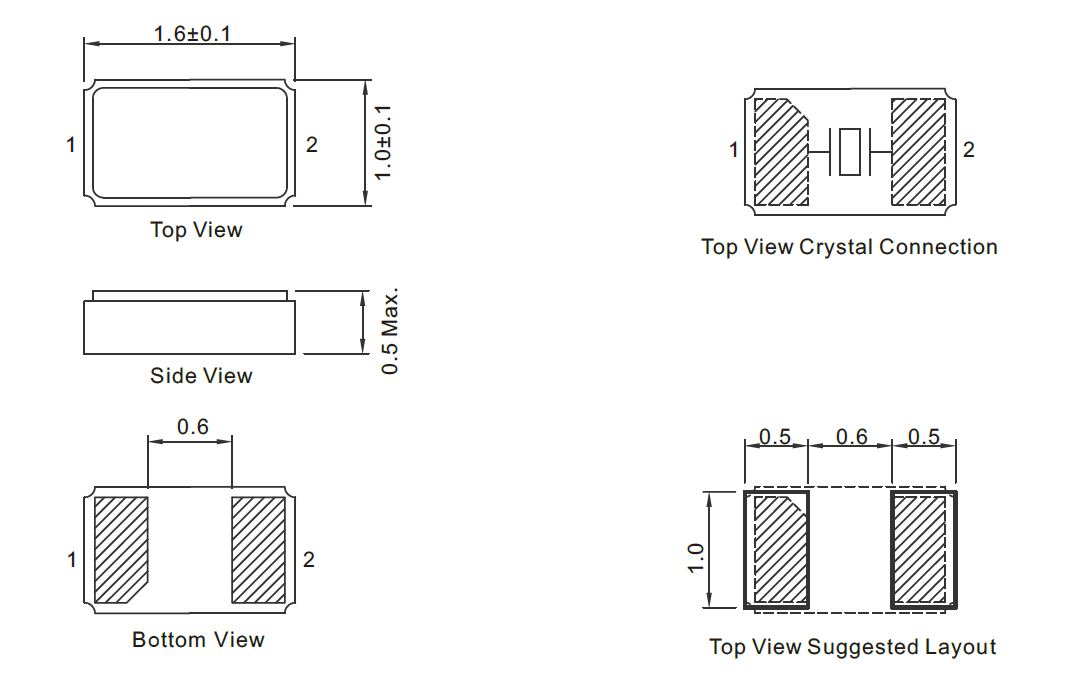

Dimensions [mm]
