Features
2520 size miniature and light SMD crystal unit with a low profile of 0.55mm
Wide frequency range from 12MHz to 54MHz
High precision and high-frequency stability
Excellent heat resistance and environmental characteristics
Automatic mounting and reflow soldering
Applications: Communication Devices, SIP Modules, Smartphones, Consumer Electronics, DVC, DSC, etc.
RoHS Compliant & Pb-Free
Specifications
| Type | 7E Seam Sealed SMD Crystal | |
| Frequency Range | 10~30MHz | 30~54MHz |
| Overtone Order |
Fundamental |
|
| Load Capacitance |
8pF, 10pF, 12pF, or specify |
|
| Drive Level | 1~200μW Max. (100μW Typ.) | |
| Frequency Tolerance | ±10ppm, ±20ppm, or specify | |
| Series Resistance | 150Ω Max (12~13MHz), 100Ω Max (13~30MHz) | 60Ω Max. |
| Shunt Capacitance | 5pF Max. | |
| Operating Temperature | -40~+85℃, or specify | |
| Storage Temperature | -55~+125℃ | |
| Aging (at 25℃) | ±3ppm /Year Max. | |
| Packing Unit |
3000pcs./Reel |
|

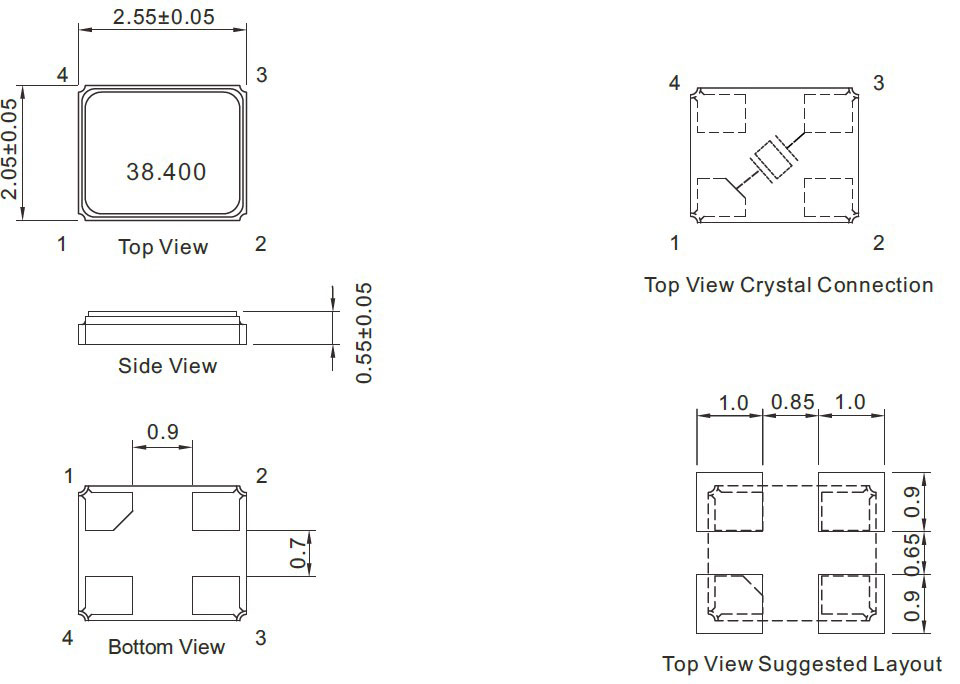

Dimensions [mm]
