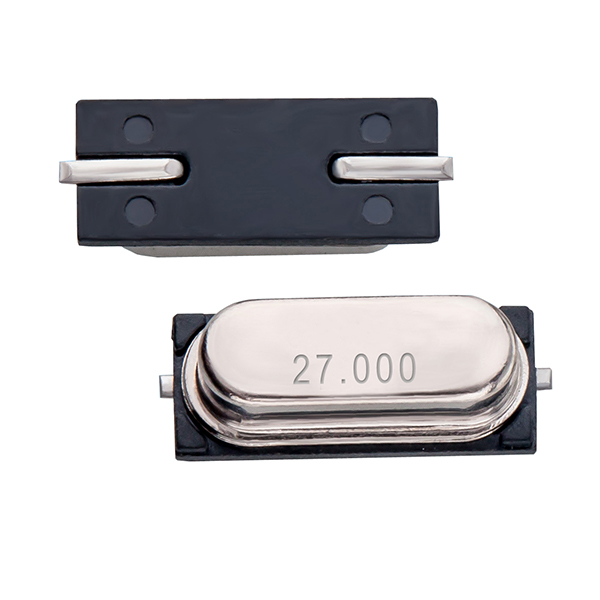

Features
Surface mounting type crystal resonators
A great number of standard frequencies
Wide frequency range from 3MHz to 100MHz
Highly mass production capability
Offering excellent frequency stability
Automatic mounting and reflow soldering
Application: PC, Automotive, Game Equipment, Visual Applications, Communications, etc
RoHS Compliant & Pb-Free
Specifications
| Type |
6P SMD Crystal |
|
| Frequency Range | 3~34 MHz | 27~100 MHz |
| Overtone Order | Fundamental | 3rd Overtone |
| Load Capacitance |
16pF, 20pF, 30pF, 32pF, or specify |
|
| Drive Level | 1~500μW Max. (100μW Typ.) | |
| Frequency Tolerance | ±10ppm, ±20ppm, or specify | |
| Series Resistance | 40~200Ω | 60~100Ω |
| Operating Temperature | -20~+70℃, -40~+85℃ | |
| Storage Temperature | -55~+125℃ | |
| Shunt Capacitance | 7pF Max. | |
|
Aging (at 25℃) |
±3ppm /Year Max. | |
|
Packing Unit |
1000pcs. /Reel | |

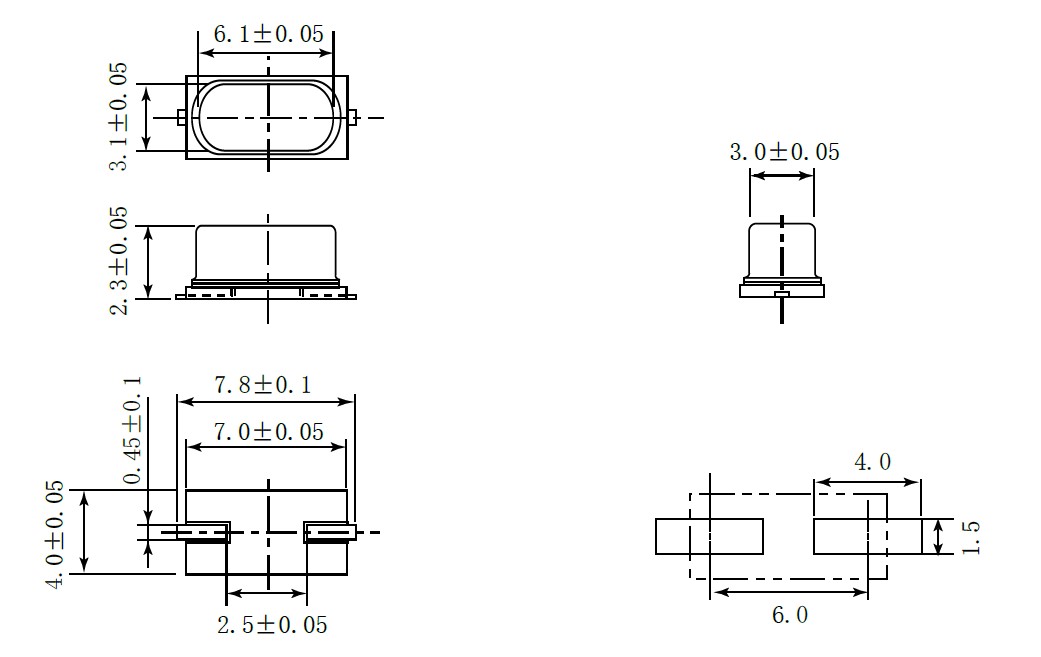

Dimensions [mm]
