Features

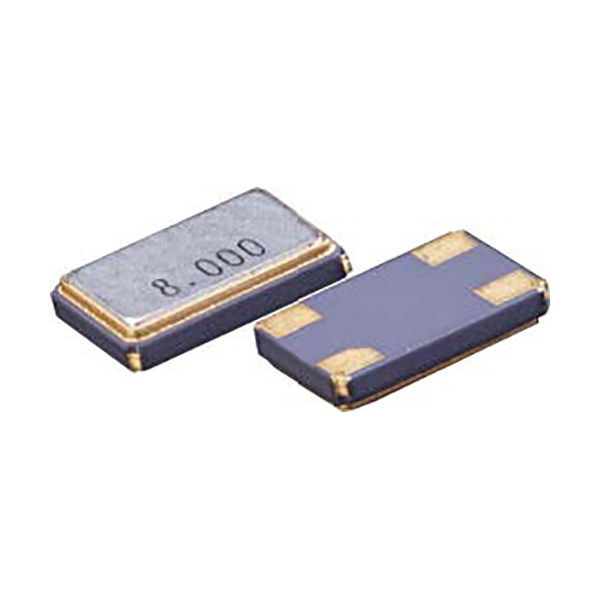

5032 size miniature SMD crystal resonator with a low profile of 0.9mm
High precision and high reliability
Wide frequency range from 8MHz up to 125MHz
Excellent for reducing EMI effect
Automatic mounting and reflow soldering
Applications: Telecommunications, Smart Factory, BT, Automotive, PC, DSC, Wireless Communications, etc.
RoHS Compliant & Pb-Free
Specifications
| Type |
7I Seam Sealed SMD Crystal |
|||
| Frequency Range | 8~11MHz | 12~54MHz | 40~60MHz | 60~125MHz |
| Overtone Order | Fundamental | 3rd Overtone | ||
| Load Capacitance | 10pF, 16pF, 20pF, or specify | |||
| Drive Level | 1~200μW Max. (100μW Typ.) | |||
| Frequency Tolerance | ±10ppm, ±20ppm, or specify | |||
| Series Resistance | 80Ω Max. | 40Ω Max. | 120Ω Max. | 80Ω Max. |
| Shunt Capacitance | 5pF Max. | |||
| Operating Temperatuer | -20~+70℃, -40~+85℃, or specify | |||
| Storage Temperature | -55~+125℃ | |||
| Aging (at 25℃) | ±3ppm /Year Max. | |||
| Packing Unit | 1000pcs./Reel | |||

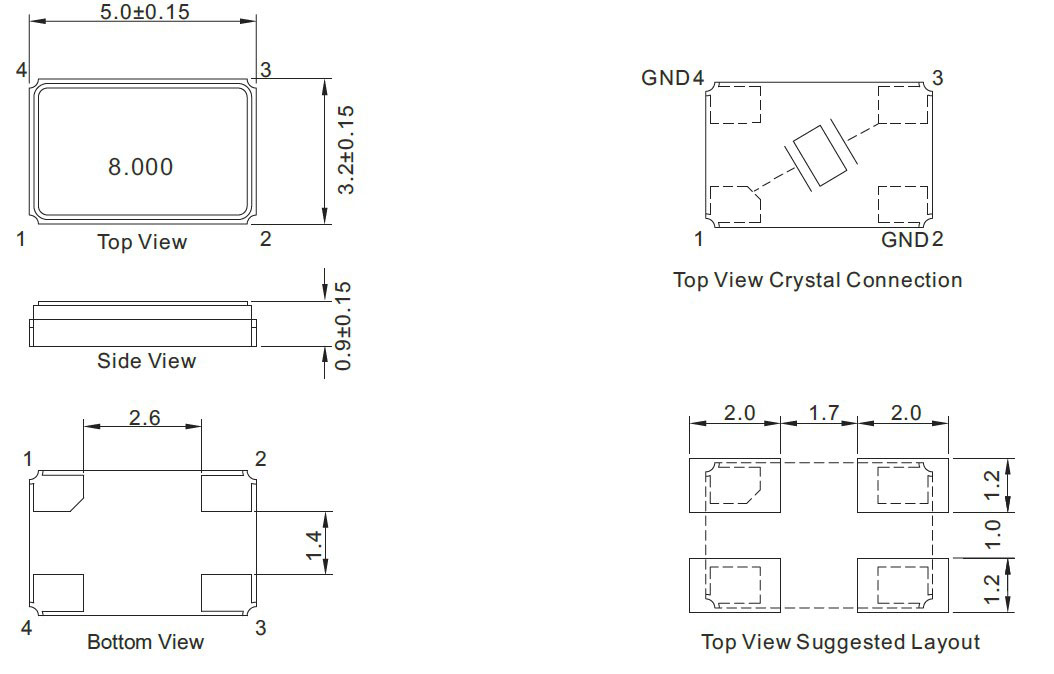

Dimensions [mm]
