Features

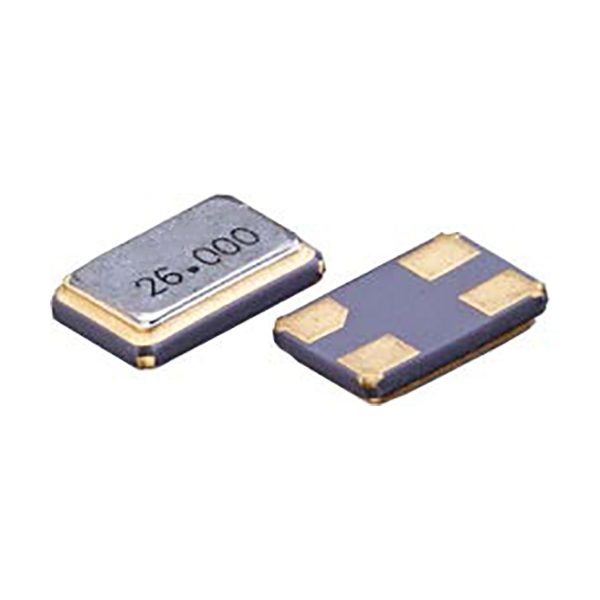

3225 size miniature and light-weight SMD crystal resonator with a low profile of 0.7mm
High precision and high reliability
Offers a wide frequency range from 8MHz to 64MHz
Excellent heat resistance and environmental characteristics
Automatic mounting and reflow soldering
Applications: Small Communication Device, IoT, Wireless Communications, BT, PDA, Cellular, etc.
RoHS Compliant & Pb-Free
Specifications
| Type |
7U Seam Sealed Crystal |
||
| Frequency Range | 8~16MHz | 16~20MHz | 20~64MHz |
| Overtone Order | Fundamental | ||
| Load Capacitance | 8pF, 10pF, 12pF, or specify | ||
| Drive Level | 1~200μW Max. (100μW Typ.) | ||
| Frequency Tolerance | ±10ppm, ±20ppm, or specify | ||
| Series Resistance | 100Ω Max. | 80Ω Max. | 60Ω Max. |
| Shunt Capacitance | 5pF Max. | ||
| Operating Temperature | -40~+85℃, or specify | ||
| Storage Temperature | -55~+125℃ | ||
| Aging (at 25℃) | ±3ppm /Year Max. | ||
| Packing Unit | 3000pcs. /Reel | ||

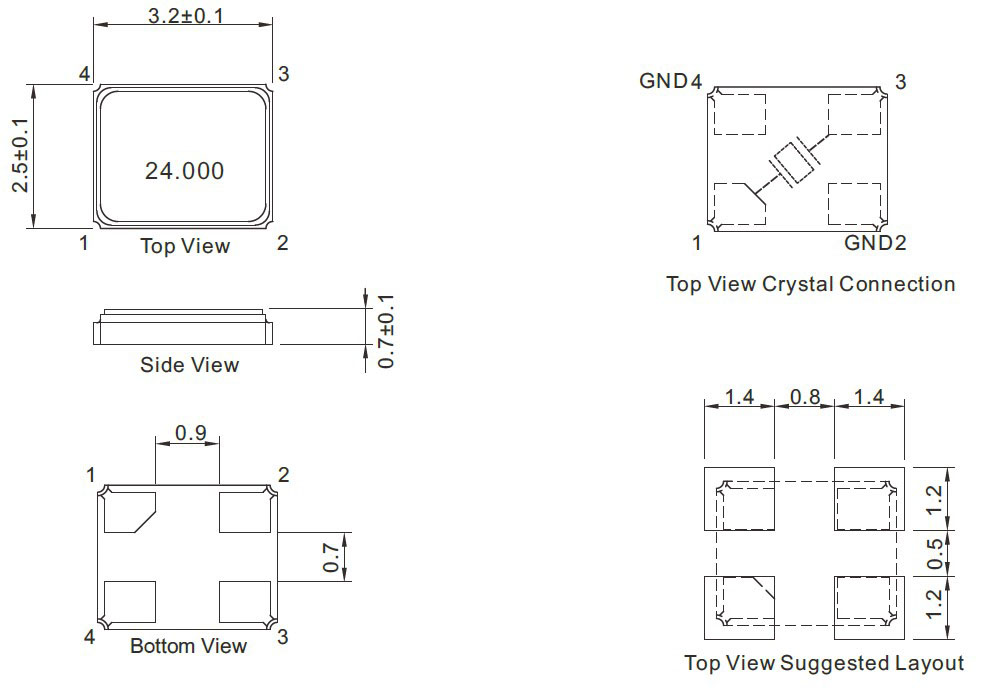

Dimensions [mm]
