Features

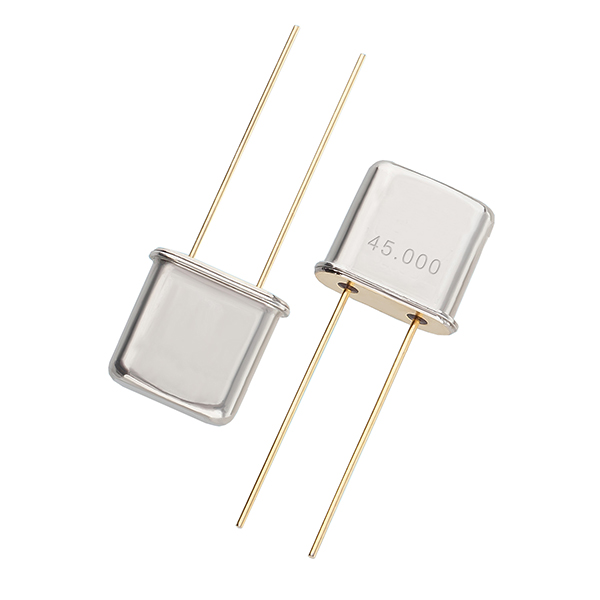

Welded type crystal units
All standard frequencies
Frequency range from 4MHz to 200MHz
Excellent aging characteristics
Uniform frequency tuning range and modulation sensitivity
Applications: TV, STB, LCDM, Communications, Consumer Devices, Cable Modem, etc.
RoHS Compliant & Pb-Free
Specifications
| Type | 6D Through-hole Crystal | ||
| Frequency Range | 4~24MHz | 24~100MHz | 100~200MHz |
| Overtone Order | Fundamental | 3rd Overtone | 5th /7th Overtone |
| Load Capacitance | Series or 9pF~50pF | ||
| Drive Level | 1~500μW Max. (100μW Typ.) | ||
| Frequency Tolerance | ±10ppm, ±20ppm, or specify | ||
| Series Resistance | 40~100Ω | 40~80Ω | 100Ω |
| Operating Temperature | -20~+70℃, -40~+85℃ | ||
| Storage Temperature | -55~+125℃ | ||
| Shunt Capacitance | 7pF Max. | ||
|
Aging (at 25℃) |
±5ppm /Year Max. | ||
|
Packing Unit |
200pcs | ||

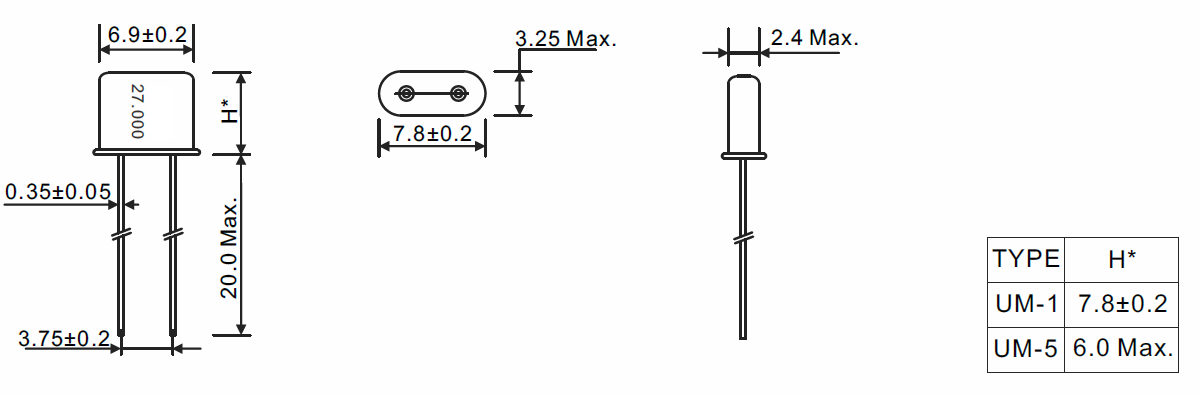

Dimensions [mm]
