Features

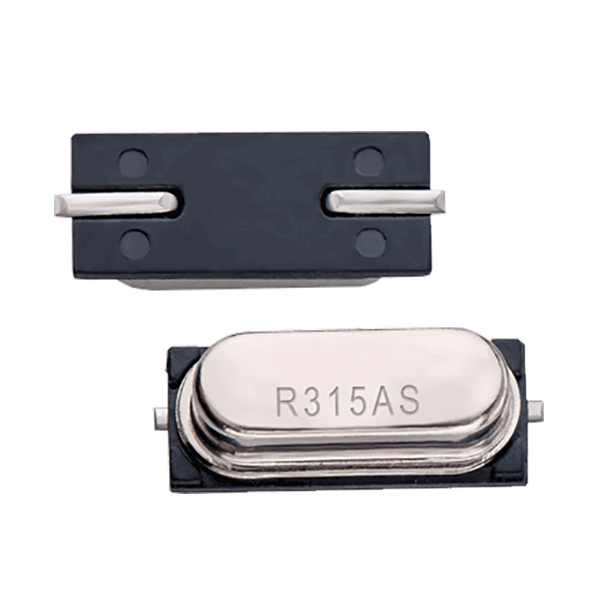

HC-49SMD case package
1-Port SAW Resonator
Other frequencies available
Electrostatic Sensitive Device (ESD)
Automatic mounting, solder reflow capable
Package code QCC8C
Applications: Automotive Electronics, Remote Control, Consumer Electronics, Alarms, etc.
RoHS Compliant & Pb Free
Specifications
| Item / Type | Minimum | Typical | Maximum | Unit | |
|
Center Frequency |
Absolute Frequency | 315MHz / 433.92MHz, or specify | MHz | ||
| Tolerance from 433.92MHz |
|
±75 |
|
MHz | |
| Insertion Loss |
|
2.5 | 2.8 | dB | |
|
Quality Factor |
Unloaded Q |
|
9270 |
|
|
| 50Ω loaded Q |
|
2300 |
|
|
|
|
Temperature Stability |
Turnover Temperature | 25 | 40 | 55 | ℃ |
| Turnover Frequency |
|
Fc |
|
|
|
| Frequency Temperature Coefficient |
|
0.037 |
|
ppm/℃ | |
| Frequency Aging | Absolute Value During The First Year |
|
|
≤10 | ppm/yr |
| DC Insulation Resistance Between Any Two Pins | 1.0 |
|
|
MΩ | |
|
RF Equivalent RLC Model |
Motional Resistance |
|
33 | 38 | Ω |
| Motional Inductance |
|
121.119 |
|
μH | |
| Motional Capacitance |
|
1.19904 |
|
fF | |
| Static Capacitance |
|
2.1 |
|
pF | |
| Operating Temperature | -40 |
|
+85 | ℃ | |
| Storage Temperature | -55 |
|
+125 | ℃ | |
| DC Voltage |
|
30 |
|
V | |

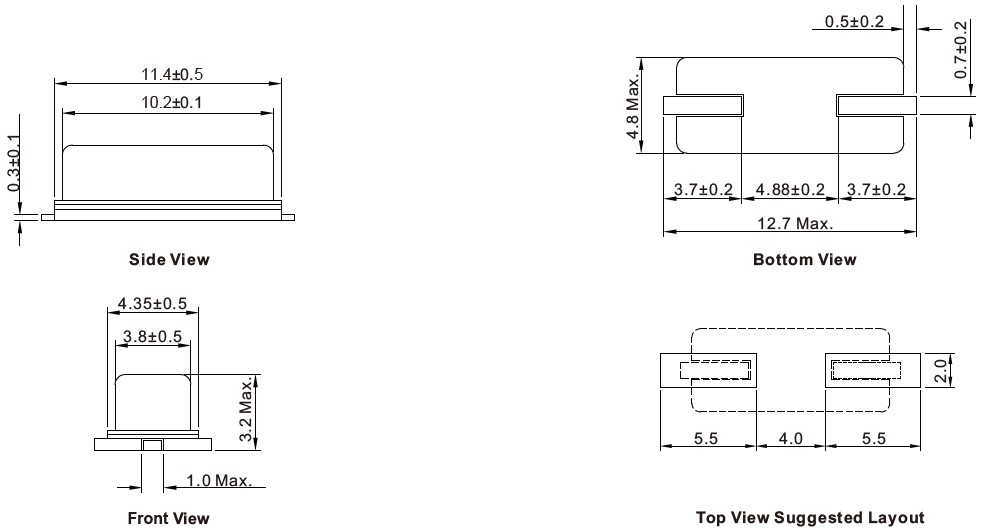

Dimensions [mm]
